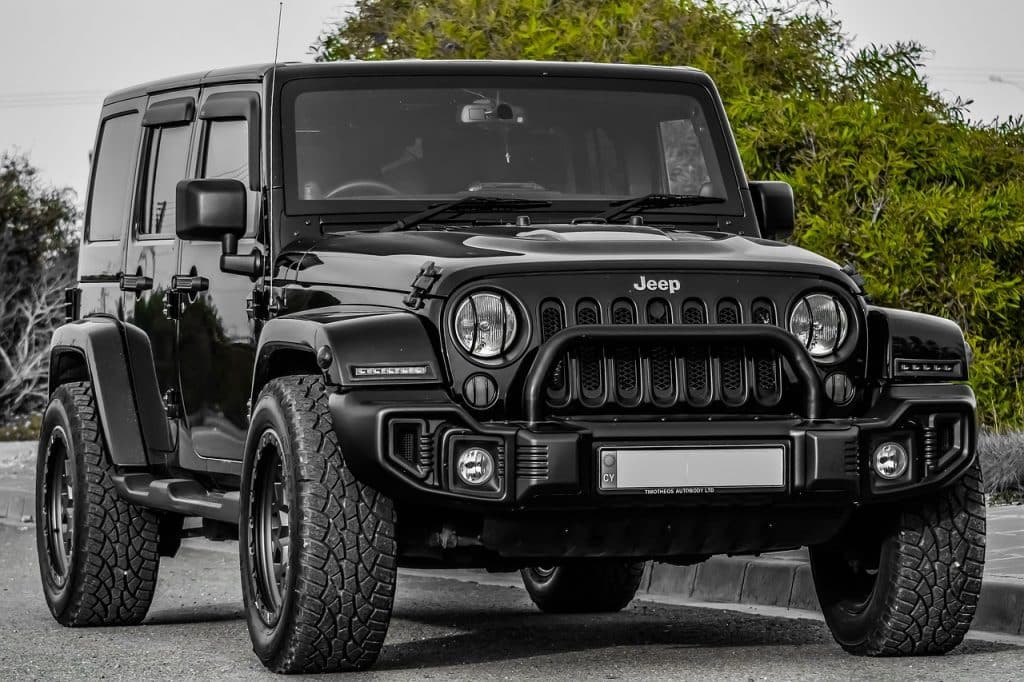

Jeep is, rather more correctly, one of those iconic American brands very well known for its array of tough, off-road, and rough-and-ready vehicles. First coming onto the roads in the 1940s, Jeeps have been on and off roads ever since. Models from Jeep include the Wrangler, Grand Cherokee, Compass, Renegade, the quirky half-SUV half-truck Gladiator, and Wagoneer by Jeep.
Keeping your Jeep’s electronics safe is a rule that many owners attempt to follow. Not just the items you carry with you, but other items as well. Similar to significant changes. Off-road excursions tend to expose Jeep electronics to harsh elements such as water, mud, and general debris. Protection of the vital systems will go a great distance towards assurance of their reliability and longevity. See more.
1. Common Electronic Failure Points During Water Crossings
Water crossings can be some of the most damaging for your Jeep’s electronic systems. Common failure points include the ECU, fuse boxes, alternators, wiring harnesses, and sensors. The water that would be trapped inside will easily short circuit, corrode, and completely damage beyond repair your electrical components. Proper planning and protection are vital in preventing such failures.
2. IP Ratings Explained: What You Need to Know
The Ingress Protection rating classification encloses the degree of protection an enclosure offers against dust and water. On a Jeep electronics setup, that would be an IP67 rating for protection against dust and temporary submersion, while an IP68 rating provides more robust protection against longer-term submersion. Knowing these ratings means selecting appropriate components for off-road conditions.
3. Basic Tools and Materials Needed for Protection
Protection of Jeep electronics requires the right tools and materials. Some basic things one may need include waterproof connectors, silicone sealant, dielectric grease, heat shrink tubing, electrical tape, and protective loom tubing. Specialized tools, like crimpers, multimeters, and waterproofing sprays, will help in maintaining strong connections.
4. Protecting Your ECU: Location and Waterproofing Methods
It is one of the most sensitive and vulnerable parts. The exposure of the ECU to water can be reduced by relocating it upwards as far as possible above the firewall. Protection with a waterproof enclosure or even sealing with silicone will also do the job. Don’t forget ventilation to prevent overheating.
5. Protect the Electrical Connectors and Harnesses
Poorly sealed or loose connections invite water ingress and corrosion. Waterproof connectors and heat shrink tubing will ensure that the connections are secured. Routing harnesses away from areas prone to water and securing them with zip ties helps reduce exposure and movement when riding on rough terrain.
6. Battery Protection and Relocation Options
The batteries are very sensitive to water and electrical shorting. Relocation of the battery to higher or most enclosed areas would avoid the submerging of it in water. The usage of a protective battery box along with a sealed enclosure could provide good protection to the batteries against the ingress of water and debris.
7. Waterproofing Fuse Boxes and Junction Points
Fuse boxes are the big failure point in wet conditions. Waterproof fuse boxes can be purchased, or standard fuse boxes can be sealed with silicone sealant for a waterproof seal. Also, dielectric grease prevents moisture ingress that corrodes connections.
8. Protection of Aftermarket Electronics (Winches, Lights, etc.)
Aftermarket electronics such as winches, auxiliary lights, and communications systems are often exposed to the weather. Choose components with high Ingress Protection ratings-housings that are indeed waterproof. Apply dielectric grease to connectors and route them inside sealed junction boxes for further protection.
9. Choose the Right Connector for Off-Road Application
Not all of the connectors stand equal for off-road; use waterproof types with a rubber seal and mechanical lockdown. Military or marine-type connectors are highly recommended because of their robustness against water and vibrations.
10. Sealing Methods: Silicone vs Epoxy vs Heat Shrink
Each has its advantage:
- Silicone: Flexible, easy to apply; good for temporary seals.
- Epoxy: Permanent, rigid seals but very problematic if any changes/modifications are to be done.
- Heat Shrink Tubing: Safety, semi-permanent seal for wiring and connectors.
- Application: Application and environment dependent specify.
11. Breather Systems and Ventilation Solutions
The breather systems allow the needed ventilation while keeping the water out. Differentials, transfer cases, and electric cases can have the breather tubes routed to a higher location. Good ventilation eliminates the formation of any type of condensation inside sealed systems.
12. In-Field Emergency Protection Methods
Quick repairs are required for unexpected situations; for such situations, emergency waterproofing tools like waterproof tape, plastic bags, and silicone sealant will protect the exposed electronics for the time being. Knowing the basic field-level repairs in waterproofing will prevent costly breakdowns.
13. Testing Your Protection: Safe Validation Methods
Water-tighten your product before sending the device out into the worst of the weather. Wet-simulate the system using a low-pressure water spray looking for leaks. Monitor the critical systems with diagnostic tools to ensure that no error or malfunction is occurring within the systems.
14. Maintenance Schedule of Protected Electronics
Regular maintenance may provide a very long life. Look for wear and damage in connectors, wiring harnesses, and sealed enclosures. Replace degraded seals, reapply dielectric grease, and replace damaged protective materials in time.
15. Most Common Mistakes to be Avoided in Waterproofing
The procedures save money and time if some common mistakes are avoided:
- Not being overconfident in temporary repairs.
- Not overlooking proper ventilation.
- Not using inferior grades of connectors or materials.
- Not moving the critical components such as the ECU.
- Not doing periodic checks and maintenance.
Understanding these pitfalls helps make sure electronics remain functional under harsh off-road conditions.
Final Words
Protection for Jeep electronics is a mix of preparation, quality materials, and regular maintenance. By addressing these key points, Jeep owners can confidently tackle water crossings and challenging terrains without risking critical system failures.
